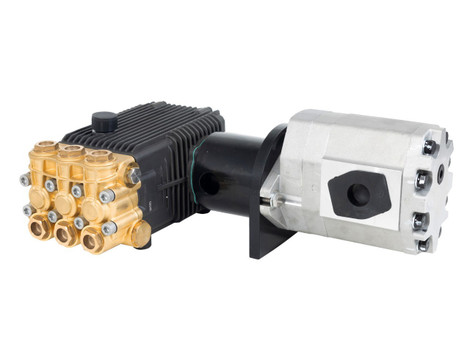

    Canpump Expands Hydraulic Pump Lineup with Three New Models

    Canpump’s hydraulic motor-driven high-pressure pumps have quickly become a trusted solution for OEMs…

    Published by Shishir

  • Mastering Electric Pressure Washers: Best Practices and Common Mistakes

    2025 Aug 19th

    Mastering Electric Pressure Washers: Best Practices and Common Mistakes

    Electric pressure washers are efficient and eco-friendly, but they rely heavily on stable infrastruc…

    Published by Shishir

  • Which Pressure Washer Is Best for You? Electric vs. Gas, Direct Drive vs. Belt Drive vs. Gearbox

    2025 Jun 16th

    Which Pressure Washer Is Best for You? Electric vs. Gas, Direct Drive vs. Belt Drive vs. Gearbox

    Selecting the right pressure washer can make a significant difference in your cleaning and sewer jet…

    Published by Shishir and Frank

  • Pressure Switch vs. Wireless Control: Choosing the Right Total Stop System (TSS) Electric Pressure Washer

    2025 Jun 5th

    Pressure Switch vs. Wireless Control: Choosing the Right Total Stop System (TSS) Electric Pressure Washer

    At Canpump, we offer two types of Total Stop System (TSS) electric pressure washers: pressure switch…

    Published by Alex and Frank

View All Articles
×
Pages
  • About Us
  • Nozzle Size Calculator
  • Help Center
  • Limited Warranty
  • Privacy Policy
  • Terms of Service
  • Blog
  • Sitemap
Categories
  • Pressure Cleaning
  • Misting
  • Soft Washing
  • High-Pressure Pumps
  • Hoses & Reels
  • Motors & Engines
  • Spare Parts
  • Help Center
  • Blog
Popular Brands
  • Canpump
  • Bertolini Pumps
  • P.A.
  • Idrobase
  • Cmatic
  • Nicolini & C
  • Loncin
  • Comet
  • Mecline
  • Mosmatic
  • View All
Info
Idroplex B2B
North America

© 2025 Idroplex

Manage Cookie Settings

         ×

Pressure Washer Nozzle Size





Helpful Tips

  • Tolerance: Rounds down if the calculated size is within 0.10 of the next lower standard size.
  • Nozzle sizes are standardized in 0.5 increments (e.g., 2.0, 2.5, 3.0).
  • Too small a nozzle = too much pressure = risk of damage.
  • Too large a nozzle = lower pressure, but safer for your equipment.
  • Match the nozzle angle to your task:
    • 0° (Red): Max pressure, for tough stains on concrete.
    • 15° (Yellow): Heavy-duty cleaning.
    • 25° (Green): General-purpose cleaning.
    • 40° (White): Gentle cleaning (cars, windows).
    • 65° (Black): Soap application, low pressure.

         ×

Misting Nozzle Charts

Misting Nozzle Size Chart

Nozzle Size Flow Operating Pressure Range (psi)
Orifice Flow rate 362 435 507 580 652 725 797 870 942 1015
0.15 mm
(0.006″)		 L/min 0.03 0.033 0.036 0.038 0.04 0.043 0.045 0.047 0.049 0.05
US gpm 0.008 0.009 0.009 0.01 0.011 0.011 0.012 0.012 0.013 0.013
0.20 mm
(0.008″)		 L/min 0.04 0.044 0.048 0.051 0.054 0.057 0.06 0.062 0.065 0.068
US gpm 0.011 0.012 0.013 0.013 0.014 0.015 0.016 0.017 0.017 0.018
0.30 mm
(0.012″)		 L/min 0.068 0.075 0.081 0.086 0.091 0.096 0.101 0.105 0.11 0.114
US gpm 0.018 0.02 0.021 0.023 0.024 0.025 0.027 0.028 0.029 0.03
0.40 mm
(0.016″)		 L/min 0.104 0.113 0.123 0.131 0.139 0.146 0.154 0.16 0.167 0.173
US gpm 0.027 0.03 0.032 0.035 0.037 0.039 0.041 0.042 0.044 0.046
0.50 mm
(0.020″)		 L/min 0.114 0.125 0.135 0.144 0.153 0.161 0.169 0.176 0.183 0.19
US gpm 0.03 0.033 0.036 0.038 0.04 0.043 0.045 0.047 0.048 0.05
0.60 mm
(0.024″)		 L/min 0.138 0.152 0.164 0.175 0.186 0.196 0.205 0.215 0.223 0.232
US gpm 0.037 0.04 0.043 0.046 0.049 0.052 0.054 0.057 0.059 0.061
0.80 mm
(0.032″)		 L/min 0.165 0.181 0.195 0.209 0.221 0.233 0.245 0.256 0.266 0.276
US gpm 0.044 0.048 0.052 0.055 0.058 0.062 0.065 0.068 0.07 0.073
1.00 mm
(0.040″)		 L/min 0.188 0.206 0.222 0.237 0.251 0.264 0.276 0.287 0.298 0.308
US gpm 0.05 0.054 0.059 0.063 0.067 0.07 0.073 0.076 0.079 0.081
1.20 mm
(0.048″)		 L/min 0.207 0.227 0.245 0.262 0.278 0.293 0.307 0.32 0.332 0.343
US gpm 0.054 0.06 0.065 0.069 0.073 0.077 0.081 0.085 0.088 0.091

Misting Nozzle Spray Angle

All nozzles were tested at 1,000 psi using water at 70℉ (21.1℃). The room humidity was between 40-50% during the tests. The patternation measurements were conducted using the SETscan OP600 patternator that can measure sprays up to a maximum diameter of 7″.

Orifice Contour based angle
0.10 / .004″ 19.90°
0.15 / .006″ 55.70°
0.20 / .008″ 72.50°
0.30 / .012″ 74.60°
0.40 / .016″ 82.00°
0.50 / .020″ 72.50°
0.60 / .024″ 91.00°
0.80 / .032″ 105.80°
1.00 / .040″ 106.90°
1.20 / .048″ 114.00°
